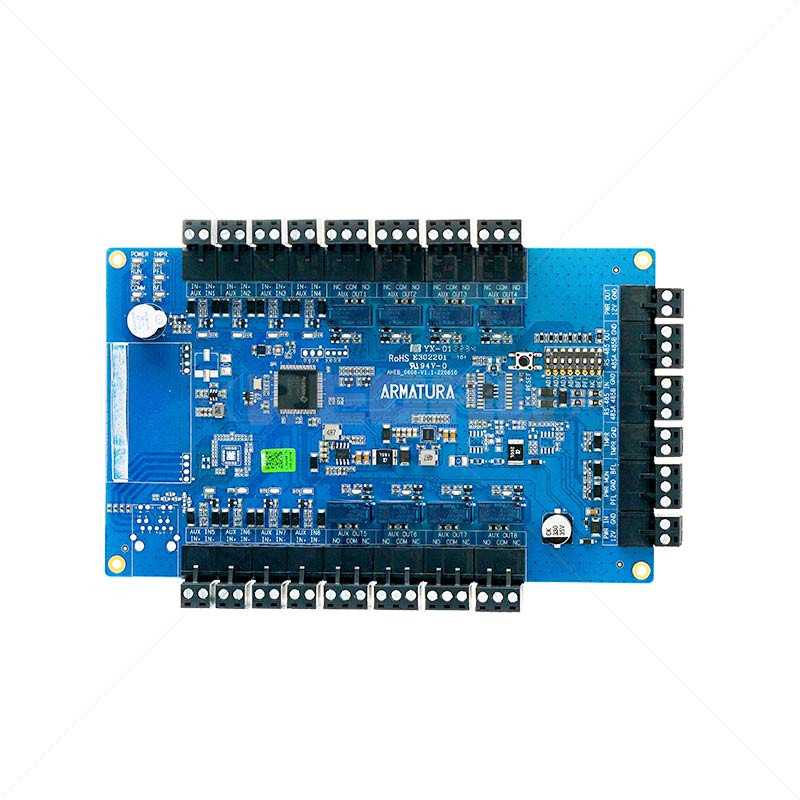

Armatura AHEB-0808 Horizon IO Expansion Board

Product Downloads

Product Information Specsheet

Product Manual

Armatura AHEB-0808 Horizon IO Expansion Board

Part No: LK800-4

Manufacturer SKU#: AHEB-0808

View Similar Products in Access Control

Regal Account holders please Sign Up or Login to view pricing

Product Specifications

IO Expansion Board
1 x RS-485
8 x supervised input (AUX IN)
8 x relay output (AUX OUT)
1 x power Input (PWR IN)
1 x power output (PWR OUT)
1 x power detection (AC fail)
1 x backup battery detection (BAT Fail)
1 x tamper input (TMPR)
Inputs : 4 state supervision, resistor values (5% tolerance)
Outputs: 8 relays, 8 x Form-C with dry contacts
RS485 Connectivity : RS485 standard / OSDP V2.2
Power & Relays : 12 - 24 VDC ± 20%, 550 mA maximum
