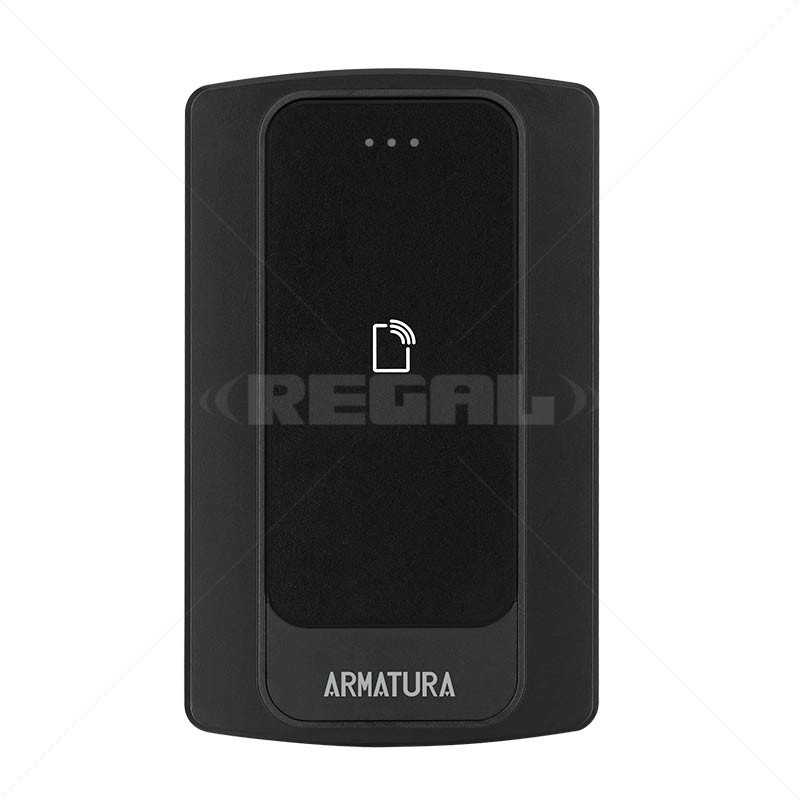

Armatura EP10C-DF Explorer EP Card Reader - 125 kHz / 13.56 MHz / BLE
Product Downloads

Product Information Specsheet

Product Manual
  • Armatura EP10C-DF Explorer EP Card Reader - 125 kHz / 13.56 MHz / BLE
  • Armatura EP10C-DF Explorer EP Card Reader - 125 kHz / 13.56 MHz / BLE
  • Armatura EP10C-DF Explorer EP Card Reader - 125 kHz / 13.56 MHz / BLE

Armatura EP10C-DF Explorer EP Card Reader - 125 kHz / 13.56 MHz / BLE

Part No: LK802-1

Manufacturer SKU#: EP10C-DF

View Similar Products in Access Control

Regal Account holders please Sign Up or Login to view pricing

    Product Specifications

  • Frequency: 125 kHz / 13.56 MHz/ 2.4 GHz Bluetooth
  • Verification token: BLE / NFC / RFID / Mifare
  • Communications: Wiegand / RS485(OSDP)
  • Data Protection: AES128 & EAL6+ Crypto Chips
  • Visual Indicator: RGB LEDs
  • Audio Indicator: Buzzer (Configuable)
  • Power: 150 mA/12 VDC Max - 9 VDC to 24 VDC
  • Operating Temp. : -30°C to 70°C / -22°F - 158°F
  • Tamper: Magnetic Tamper Detection System
  • Certification:FCC,CE,UL294, EAL 6+ Certified Crypto Chip
  • Protection: IP68 / IK10
  • Housing Material: Polycarbonate UL94-V0 & UL746C (F1)
  • Mobile App: ARMATURA ID
