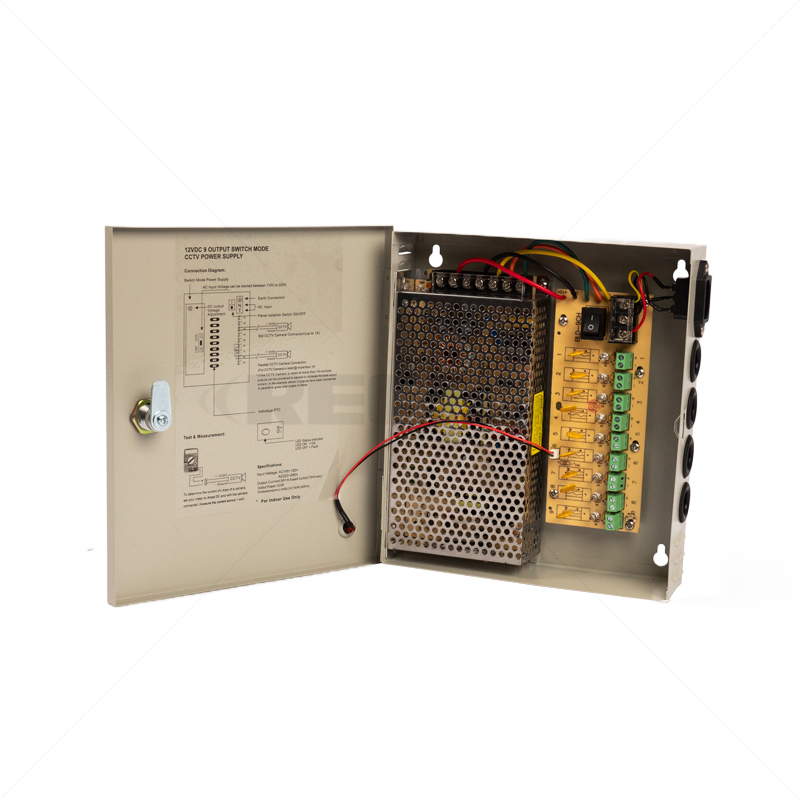

Power Supply CCTV 9way 10Amp Distribution Box

Product Downloads

Product Information Specsheet

Product Manual

Power Supply CCTV 9way 10Amp Distribution Box

Part No: PS64-2

View Similar Products in Power Supplies and Batteries

Regal Account holders please Sign Up or Login to view pricing

Product Specifications

Input voltage: 100 - 240VAC at 50/60Hz
Output voltage: 12VDC 10Amp
Switch mode power supply
9 CCTV camera connections rated 1.1Amp each
Includes SA plug top and 300mm lead
Lockable enclosure, grey-epoxy coated finish
Metal housing dimensions: 203mm (H) x 203mm (W) x 53mm (D)
