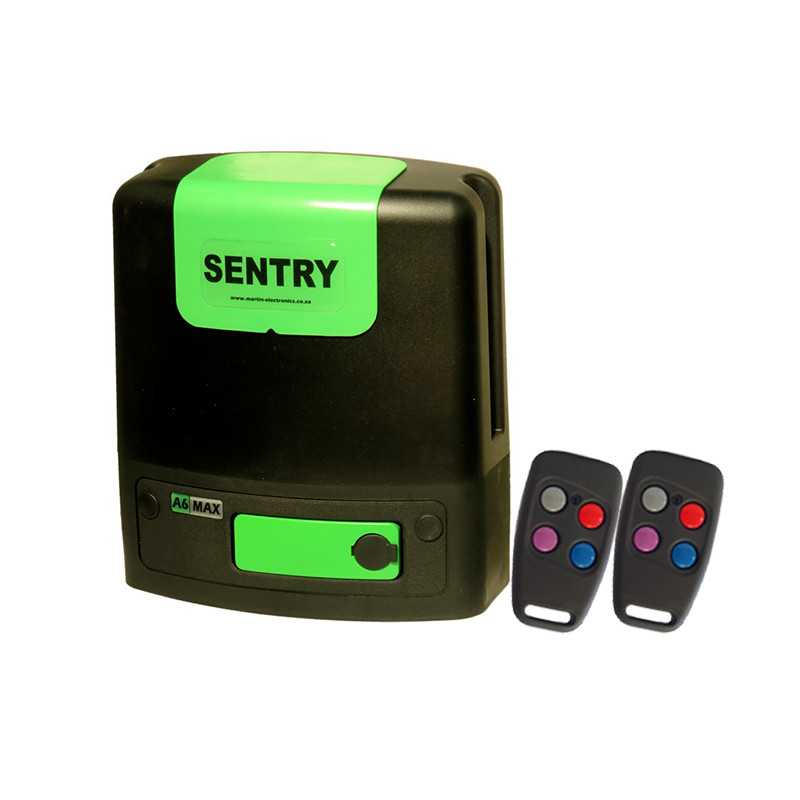

Sentry A6 MAX Sliding Gate Motor + 2x TX4 Code Hopping

Part No: GA134

Manufacturer SKU#: MEA6MAX-01

View Similar Products in Gate and Garage

Regal Account holders please Sign Up or Login to view pricing

    Product Specifications

  • Input Voltage: 220-240VAC 10% /50Hz
  • Motor Power Supply: Battery Driven (1x7Ah)
  • Battery Charger: 2A @ 13.8V
  • Current Consumption (mains): 170mA
  • Current Consumption (motor at rated load): 10A
  • Operator Push Force Starting: 30kgf
  • Operator Push Force Rated: 20kgf
  • Gate Mass Maximum: 600kg
  • Gate Length Maximum: 24m
  • Maximum Gate Speed (varies with load): 18-20 m/min
  • Manual Override: Lockable door with key release
  • Maximum numbers of operations per day: 200
  • Duty Cycle: 50%
  • Operations in standby with 7Ah Battery
